Case study

200kW Solar and 200kWh Battery Storage for Rolec Services

Published 10 November 2025

Free quoteCall 01754 879171

Project Overview

Another major commercial installation successfully delivered by CES Renewables! We’ve just finished a 200kW Solar PV system paired with 200kWh of battery storage, designed for long-term savings, efficiency, and sustainability.

Project Highlights

  • 440 × 455W All-Black Panels
  • 3 × 30kW SolaX Ultra Hybrid Inverters
  • 1 × 15kW Grid-Tied Inverter (Test Bay)
  • 39 × 5.2kWh Batteries (200kWh total storage)
  • Clenergy Mini Rail Mounting System
  • CT Meters for Real-Time Grid Monitoring
  • Full Offsite Monitoring Access
  • MCS certified, NICEIC approved
  • National Grid Application Managed by CES Renewables
  • Payback Calculations Included

This large-scale renewable system delivers significant energy savings and a greatly reduced carbon footprint for our commercial client at Rolec Services Ltd, built to perform for years to come.

Key Benefits

  • Substantial reductions in energy bills
  • Energy independence and resilience
  • Reduced reliance on grid power during peak times
  • Enhanced sustainability credentials
  • Ongoing real-time performance monitoring

Outcome

This project showcases CES Renewables’ expertise in delivering integrated Solar PV and Battery Storage solutions for commercial clients. By combining generation and storage, Rolec Services Ltd can now harness, store, and manage renewable power efficiently,
paving the way for long-term cost savings and energy security.

Looking Ahead

Thinking about cutting your energy costs and future-proofing your business? Let’s make it happen. CES Renewables designs, installs, and commissions bespoke Solar PV and Battery Storage systems for businesses across the UK.

From site

Photographs and footage from the job.

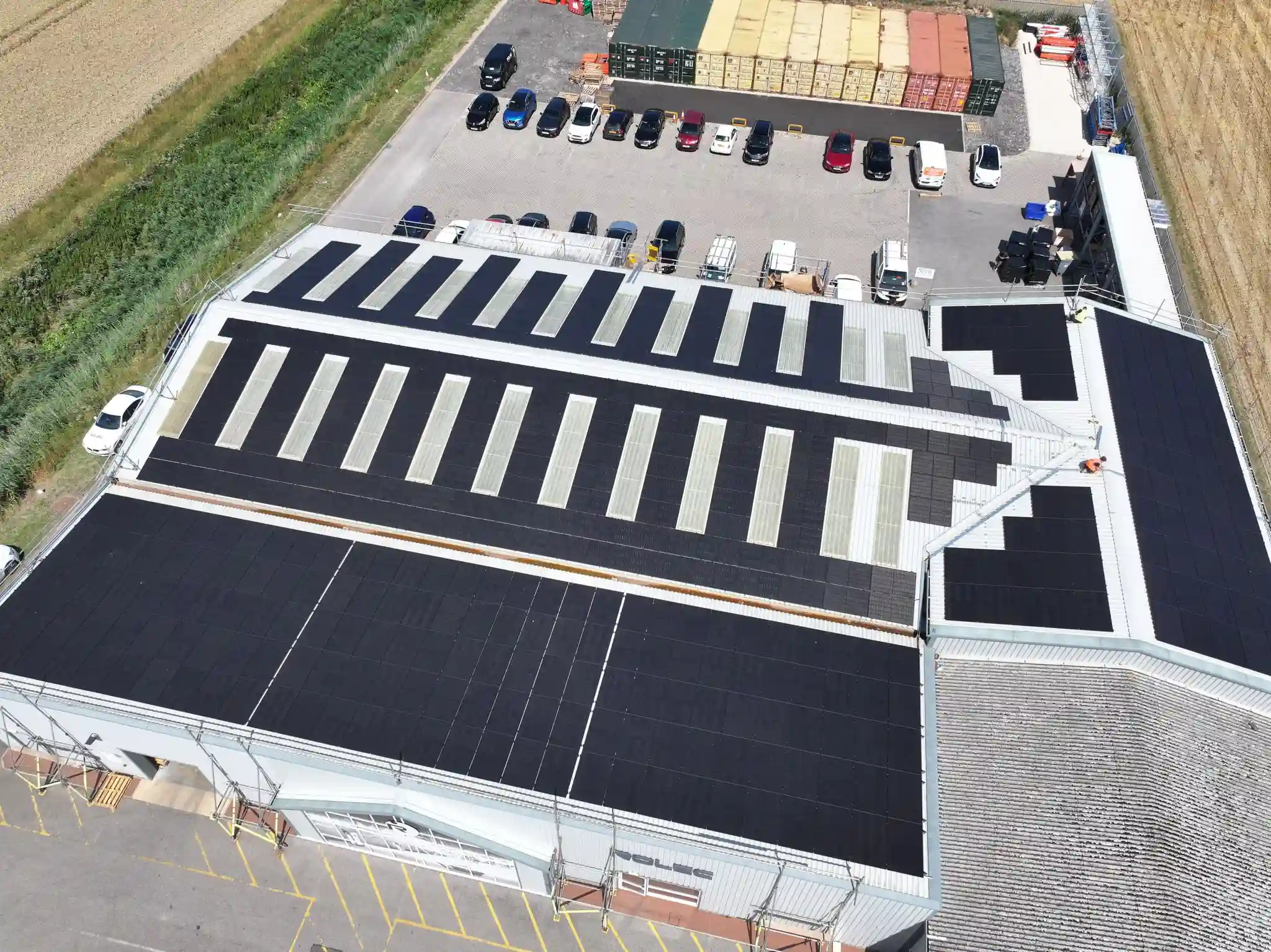

Overhead view of the Rolec Services roof, all black panels laid in rows between the rooflight strips

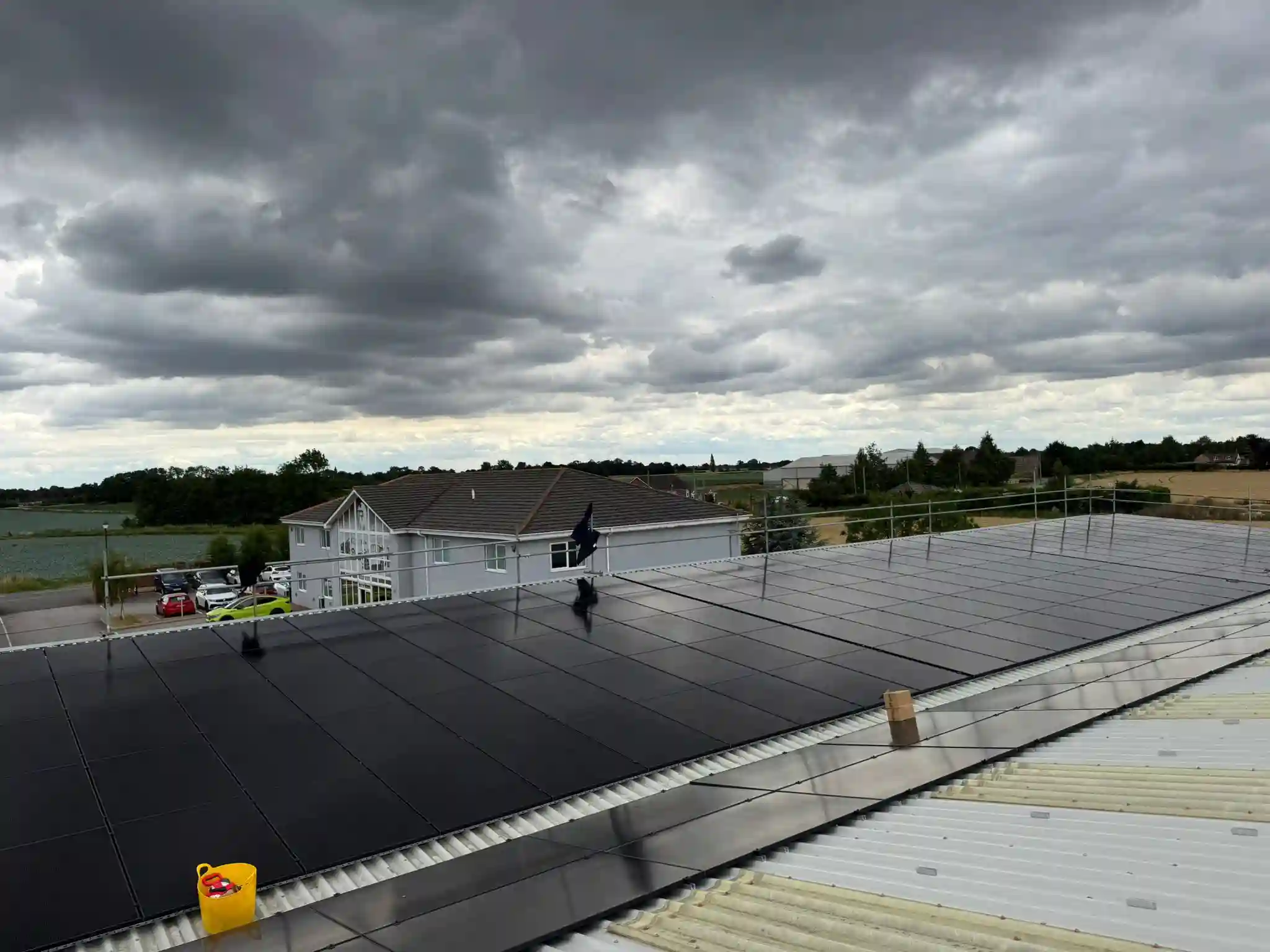

All black solar panels across a corrugated roof under a stormy sky, with offices and a car park beyond

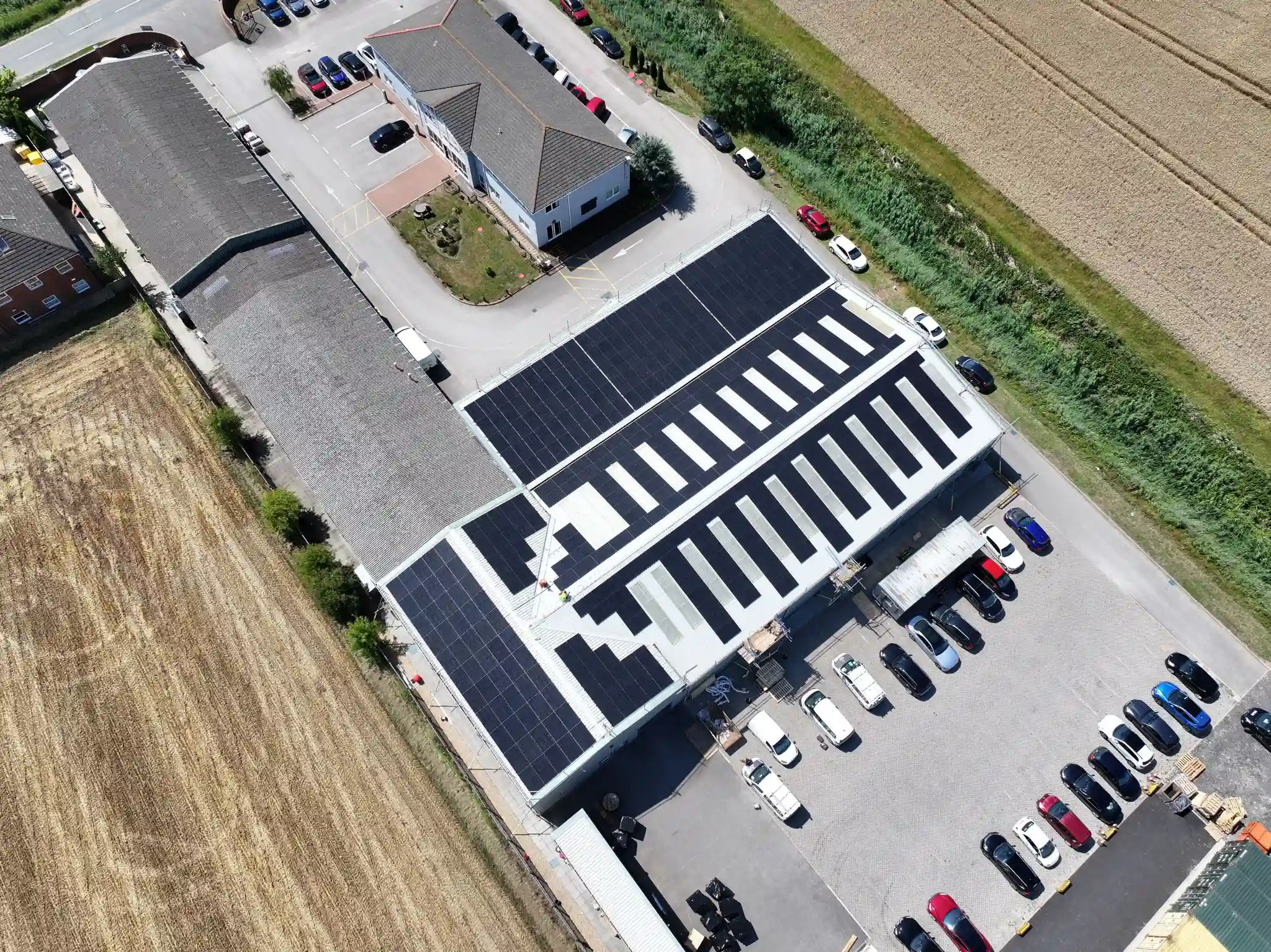

Angled aerial view of the solar arrays across the industrial roof, with farmland on both sides of the site

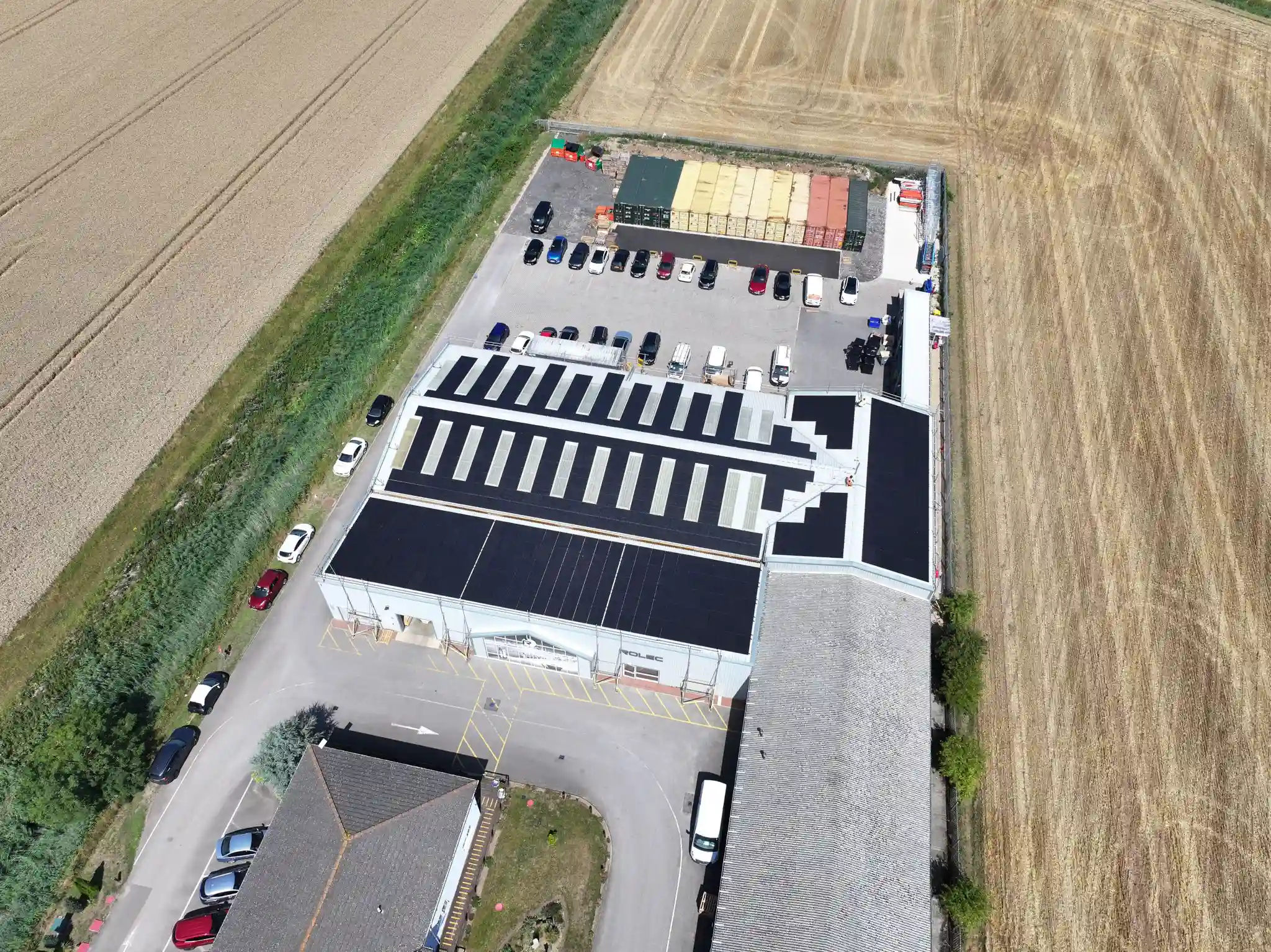

High aerial view of the Rolec building with arrays across its roof, the car park and stubble fields around it

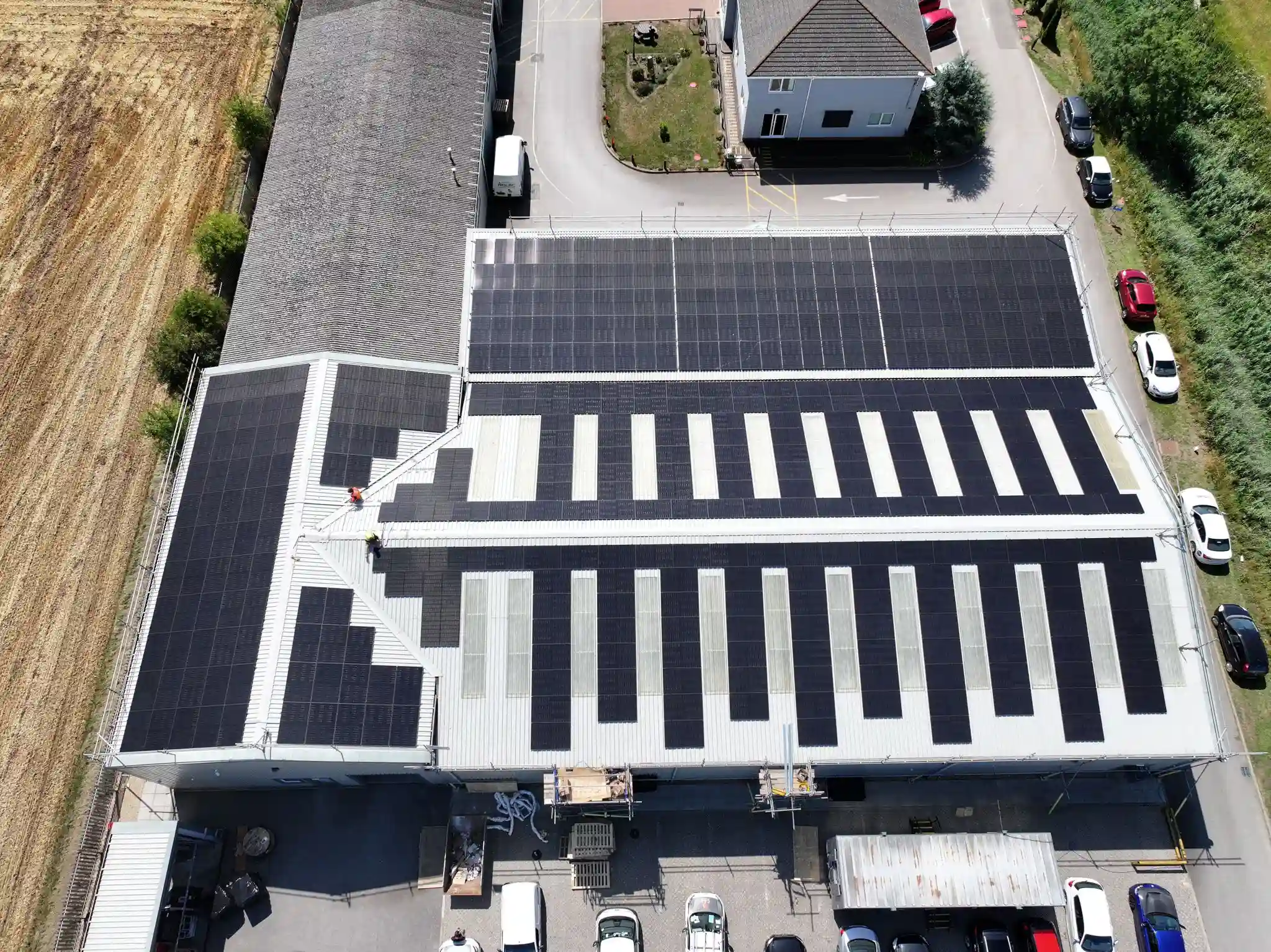

Aerial view of panel rows between the rooflights and a solid block over the front, two installers on the roof

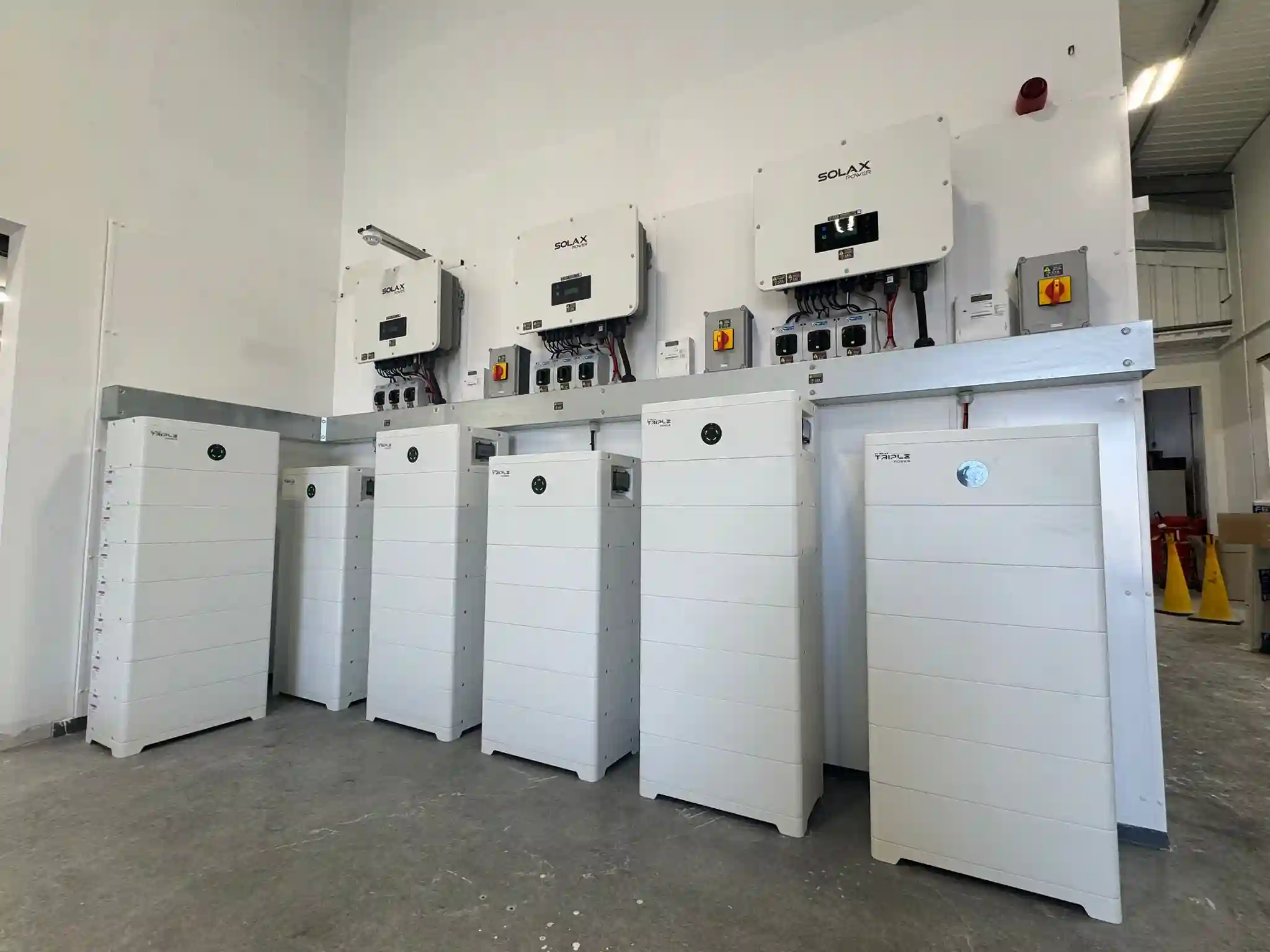

Six SolaX Triple Power battery stacks lined up beneath three SolaX inverters and their isolators on a plant room wall

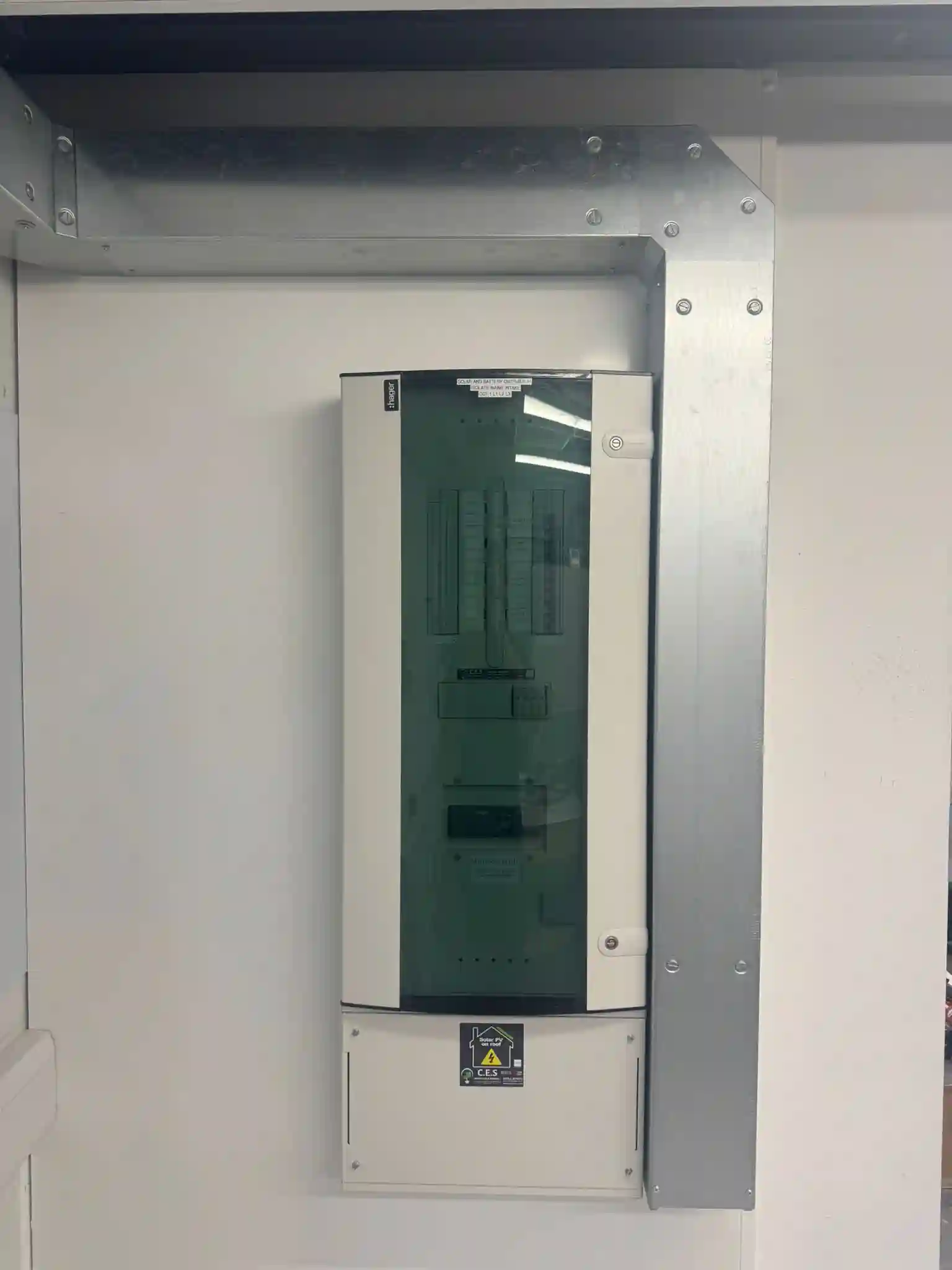

A Hager distribution board for the solar and battery system, fed by galvanised trunking and carrying a CES warning label

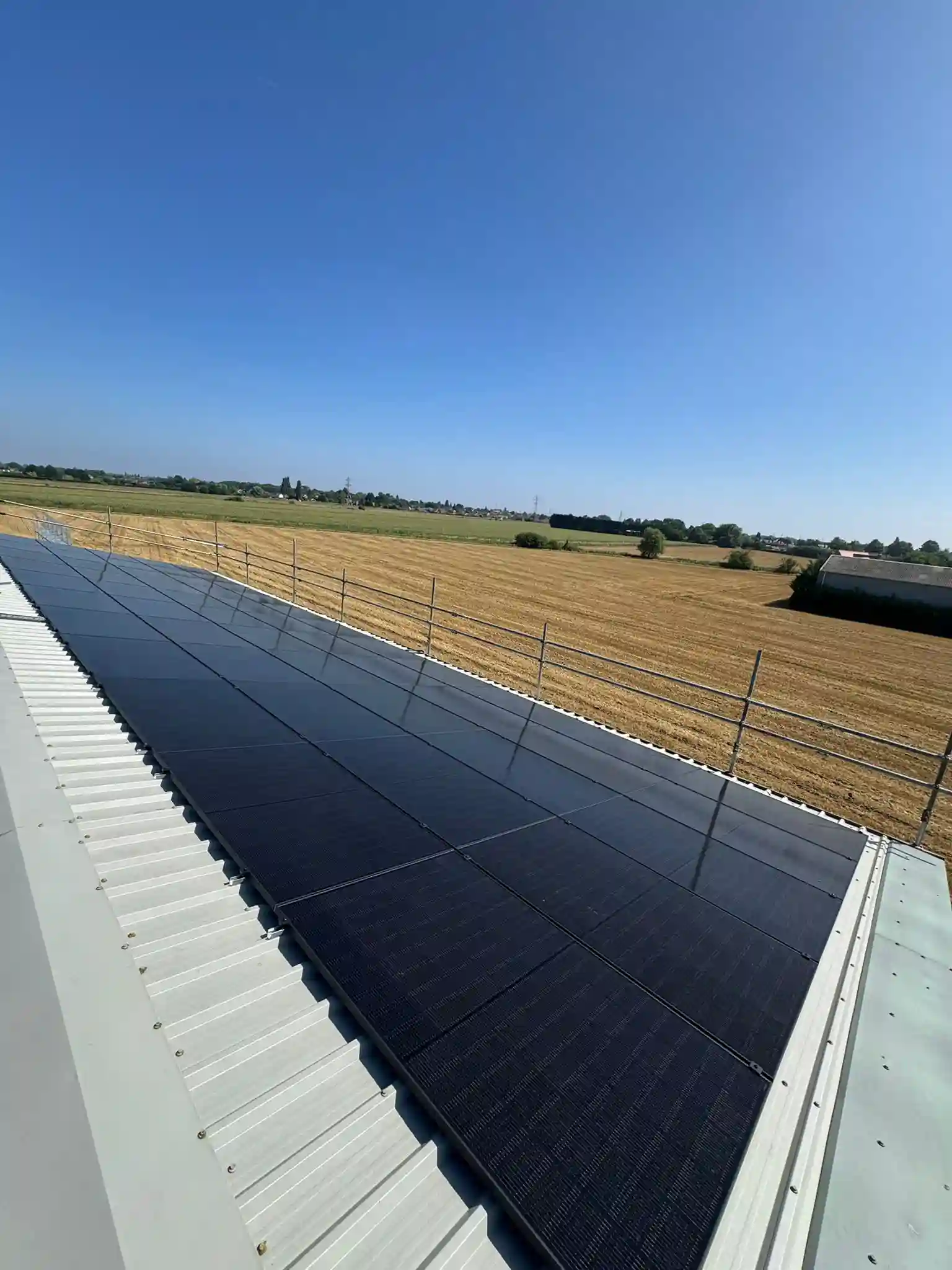

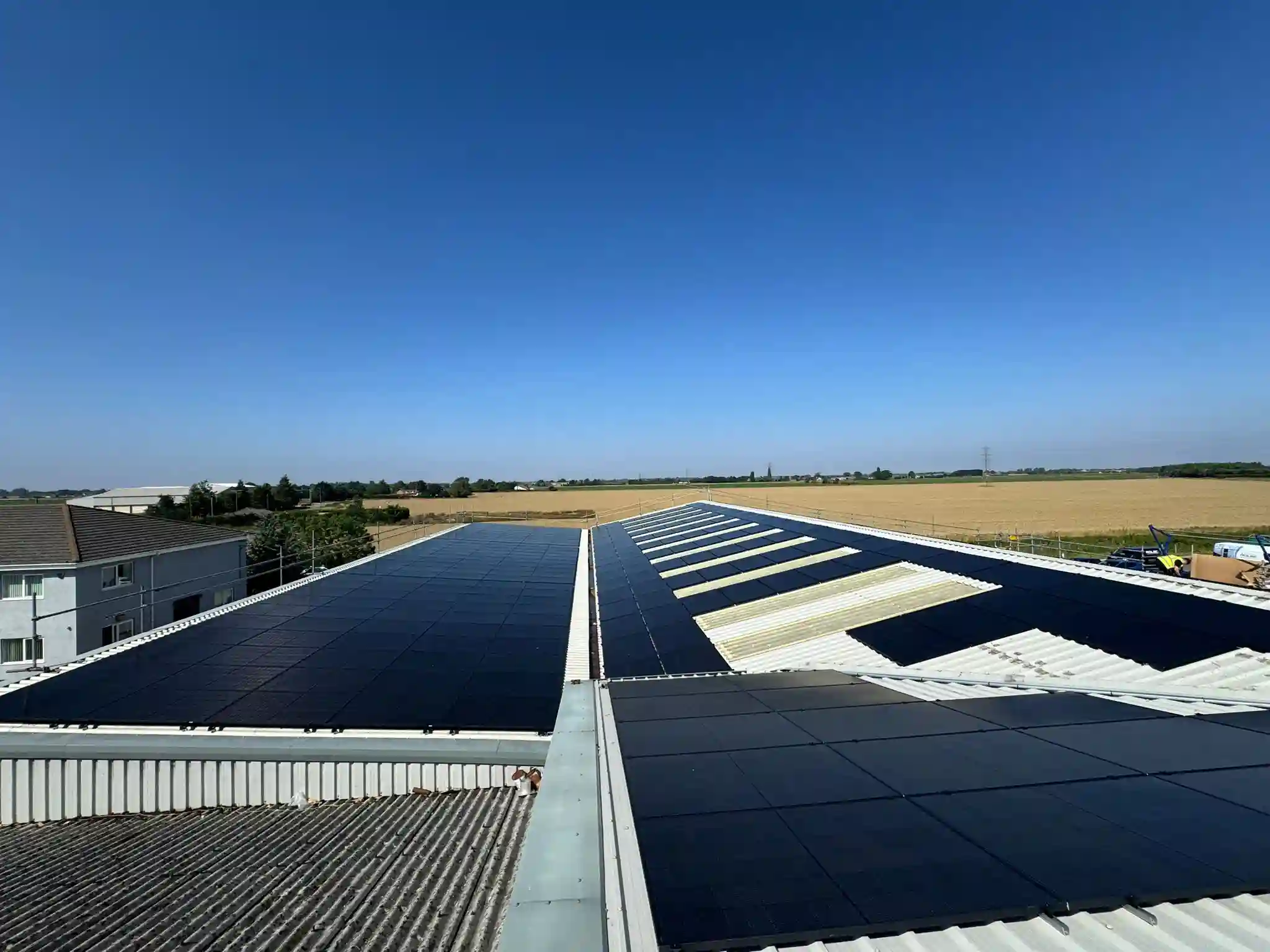

Rows of all black panels running the length of the corrugated industrial roof under a clear sky, flat farmland beyond

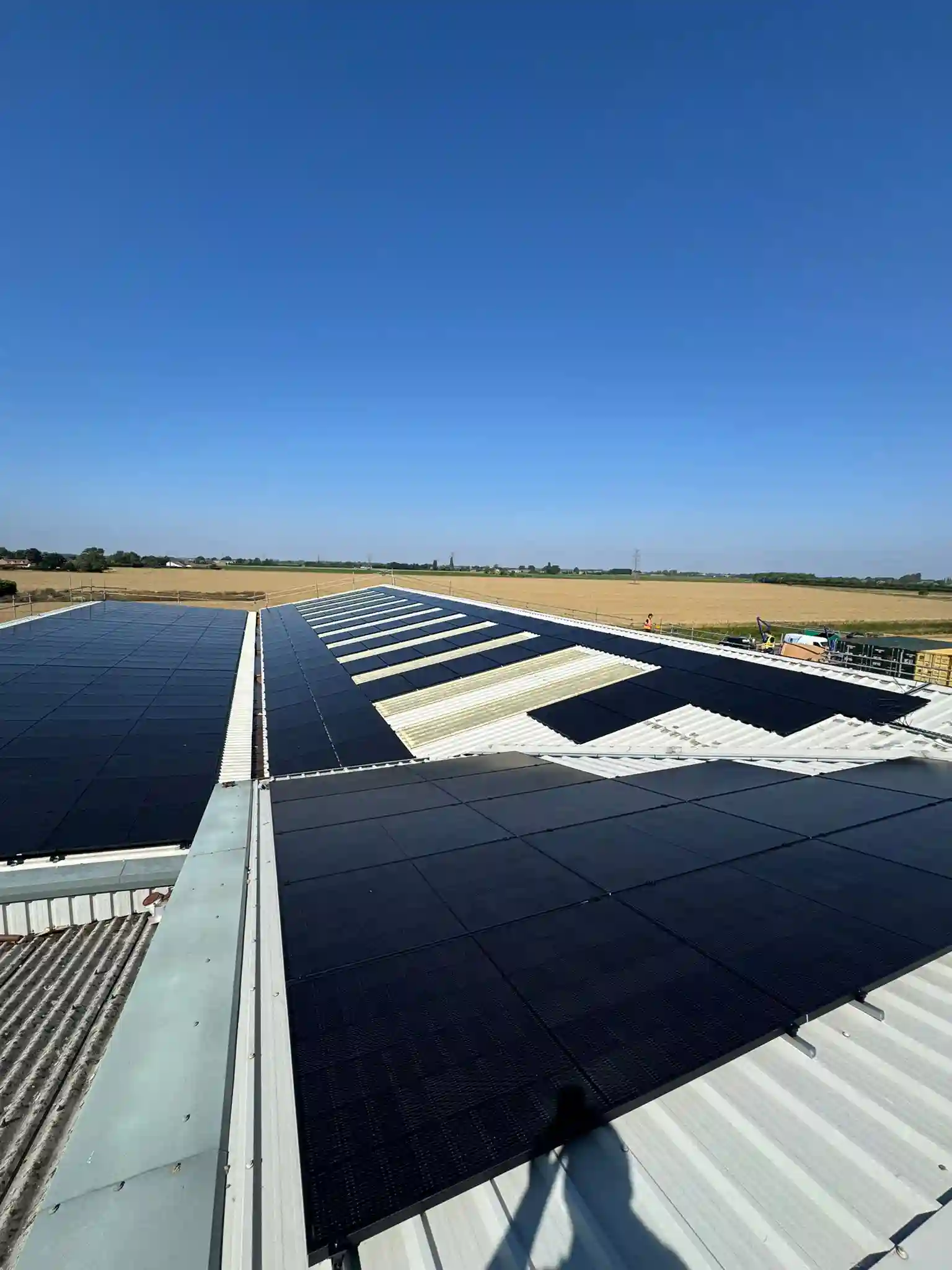

Solar panels across several sections of the corrugated industrial roof, the office building to one side and fields beyond

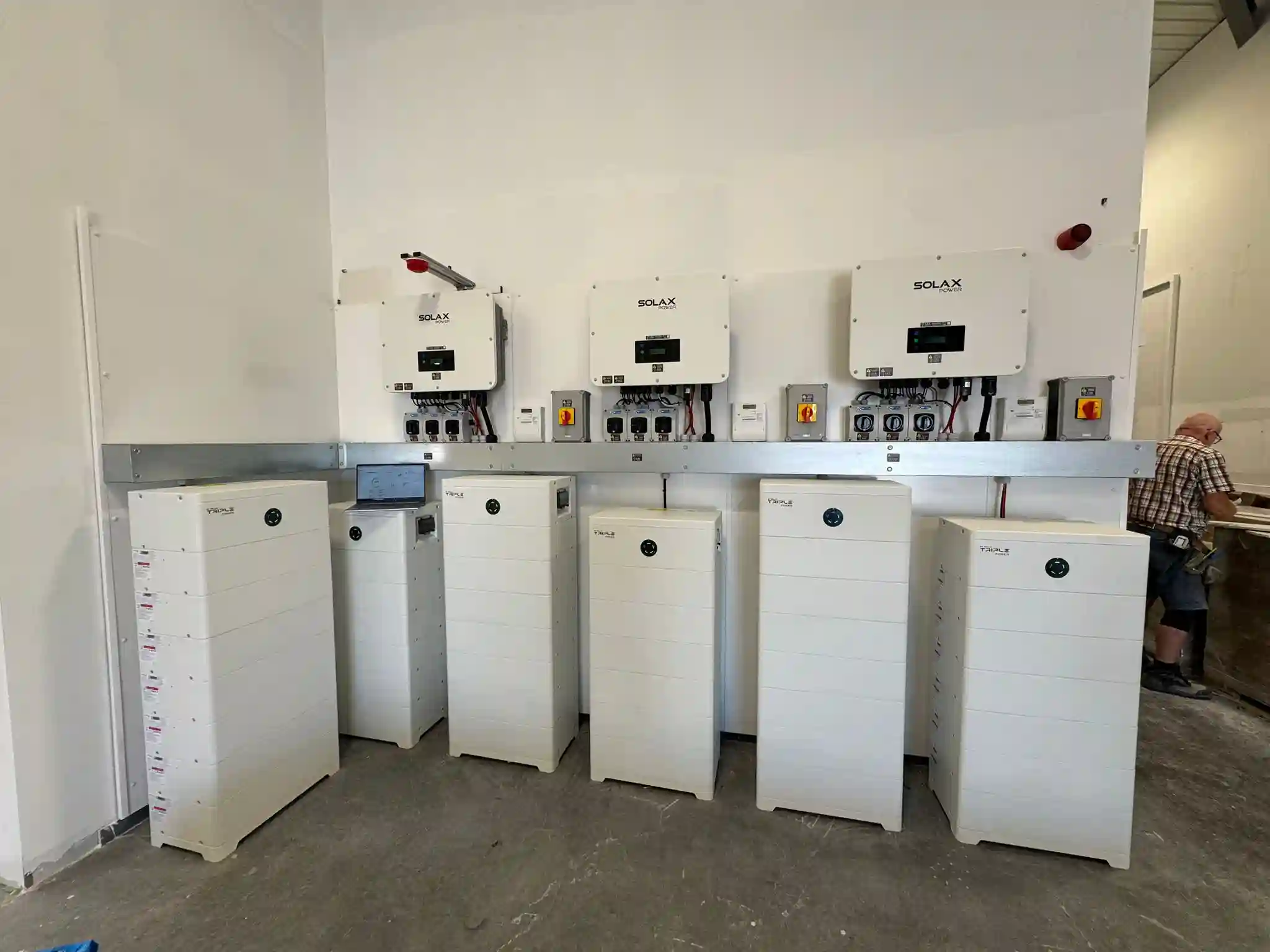

Three SolaX inverters above six Triple Power battery stacks, a laptop open on one and a worker alongside

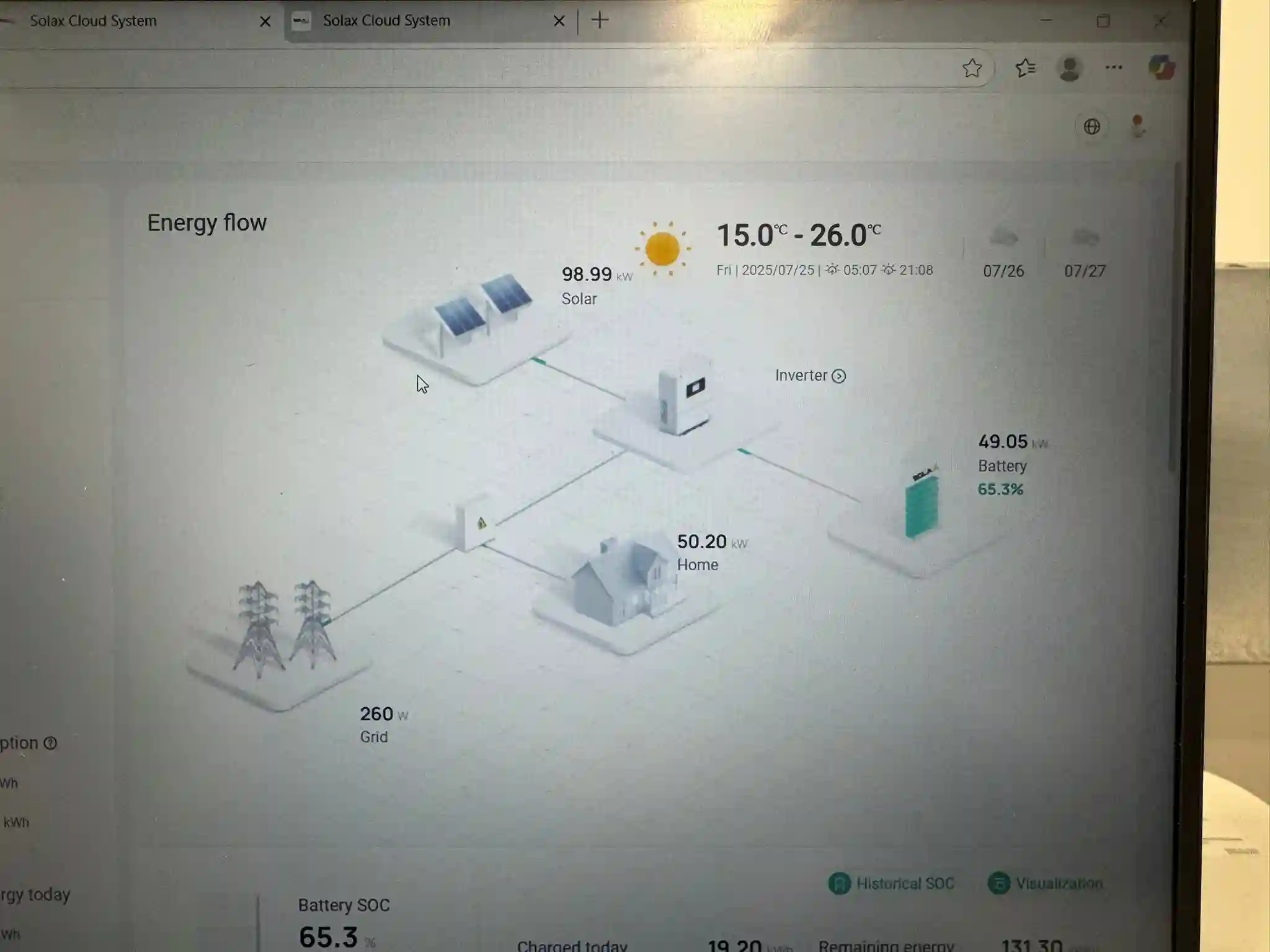

SolaX Cloud energy flow screen reading 98.99kW of solar, the battery at 65.3 percent and the grid at 260W
A long all black array along one slope of the corrugated roof, edge protection and a stubble field beyond

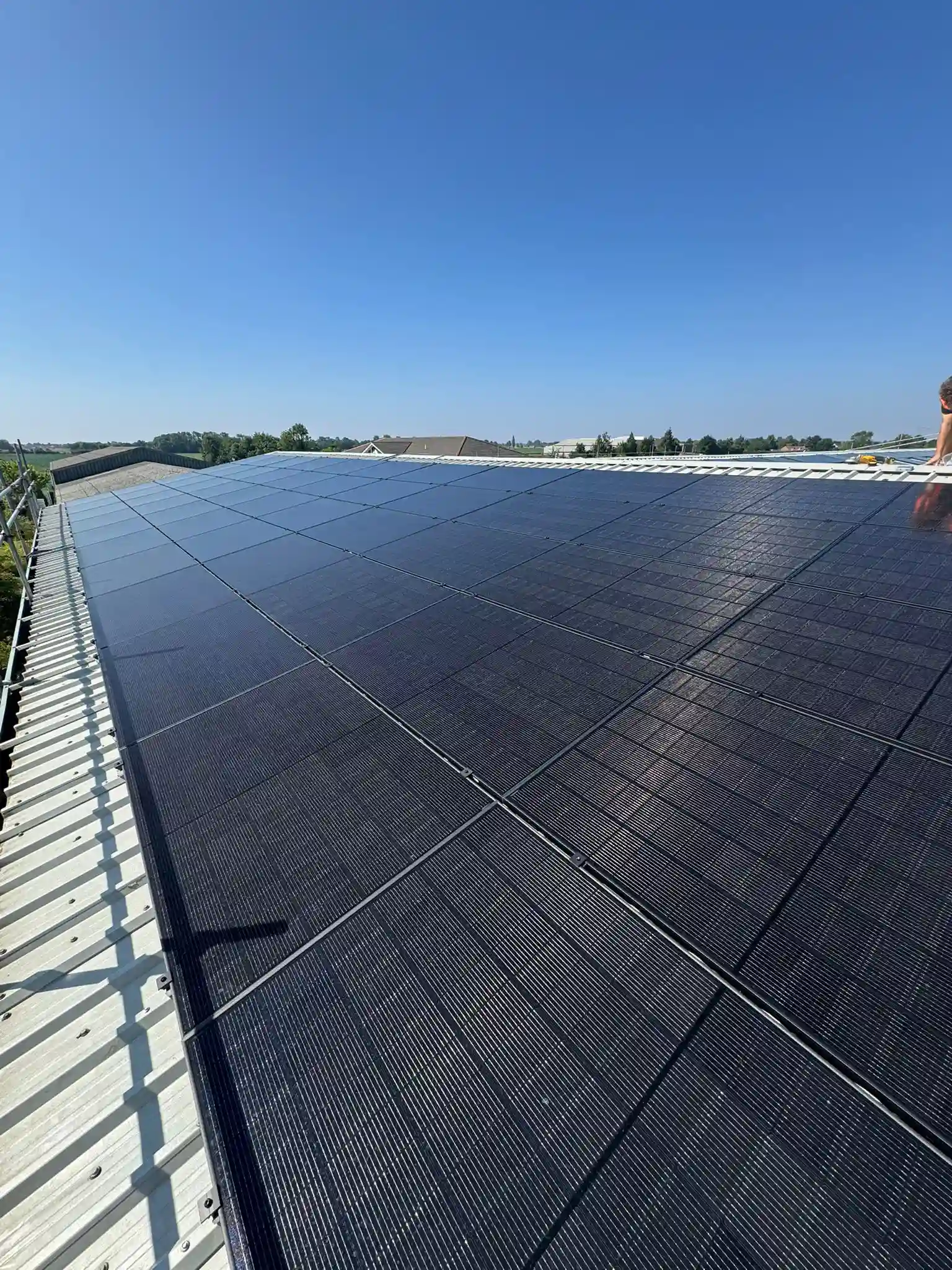

Close view across a full slope of all black panels on the corrugated roof under a clear blue sky

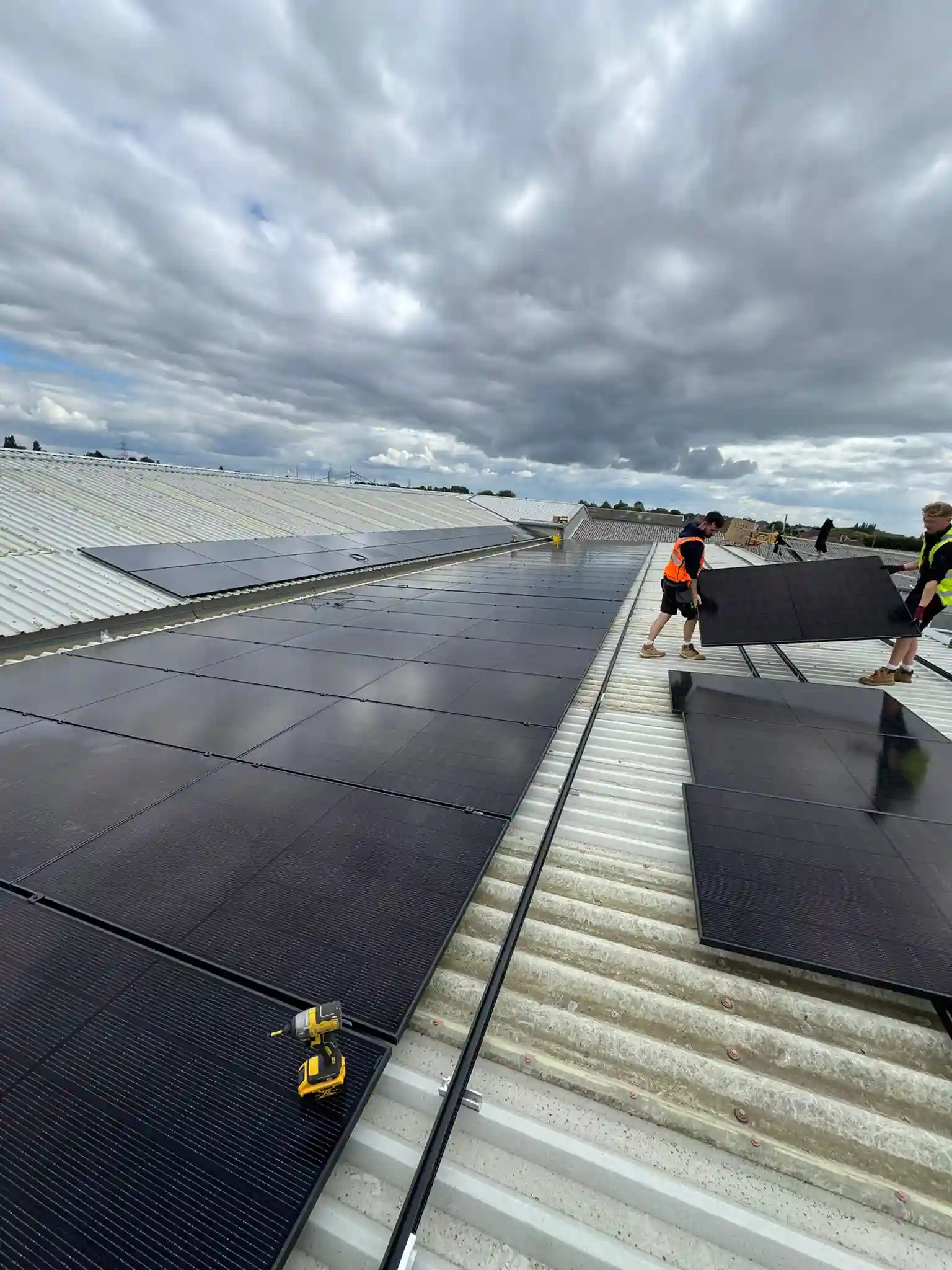

Two installers carrying a solar panel across the corrugated roof to the next row, an impact driver resting nearby

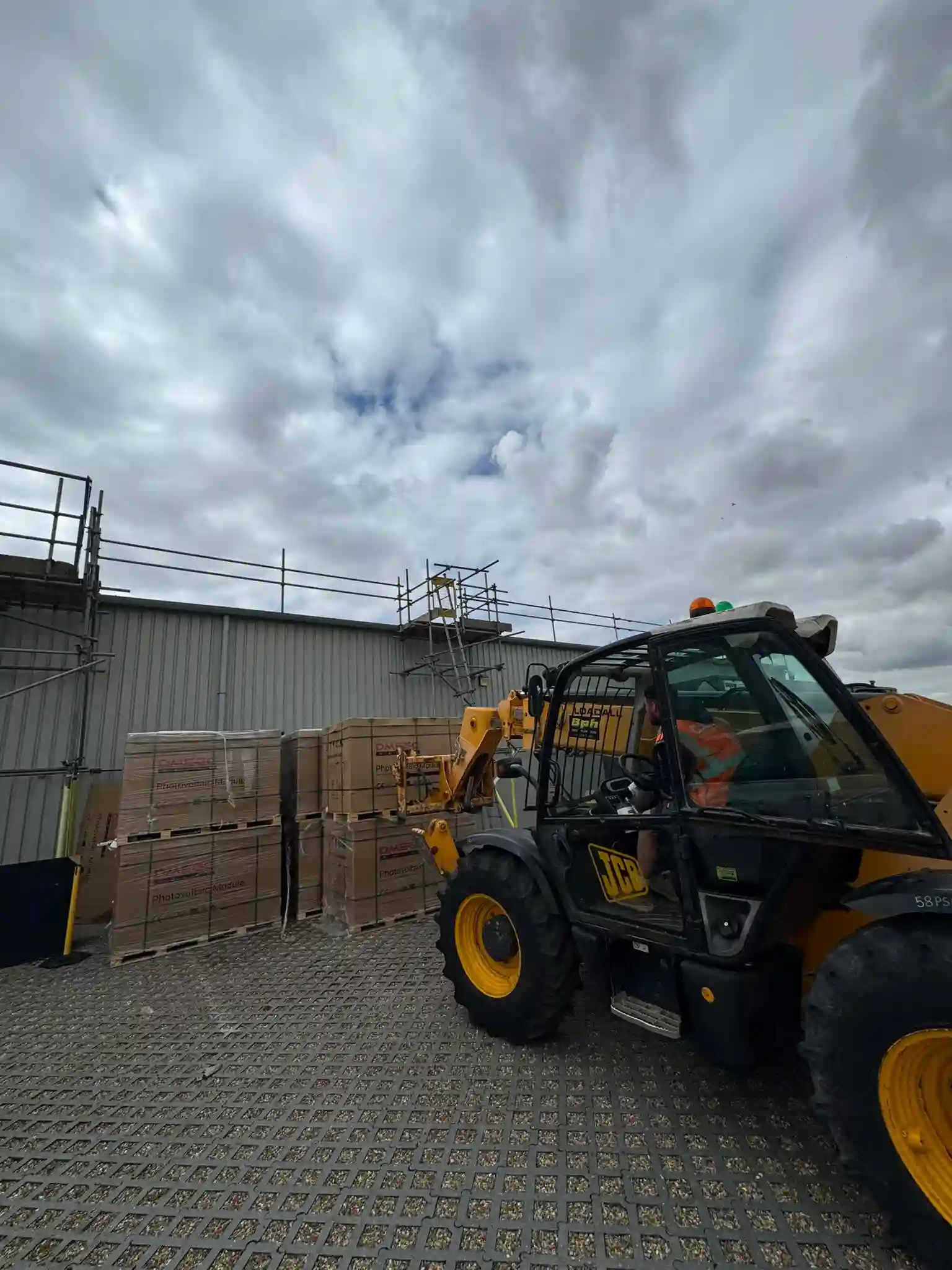

A telehandler beside pallets of boxed DMEGC solar modules stacked at the foot of the scaffolded building
